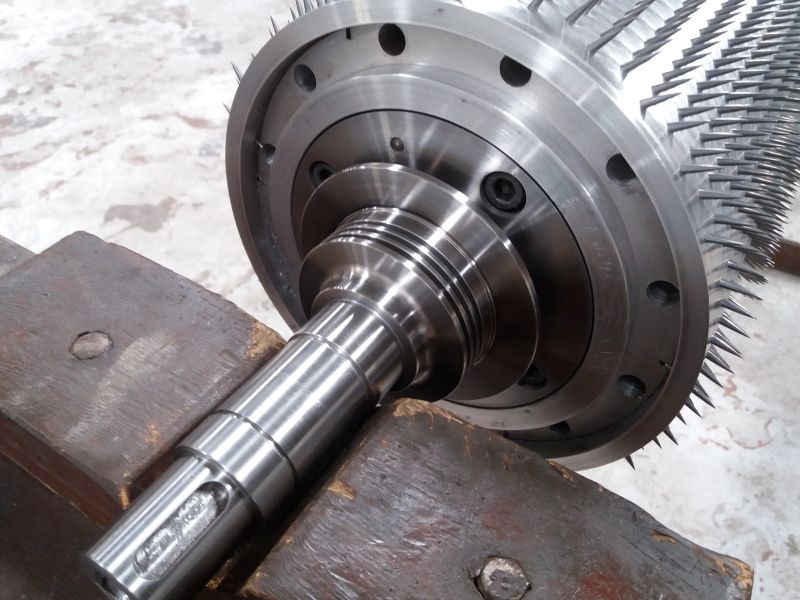

Blowroom Pin Beaters are having pinned segment and direct pinned Rolls.
Select your machine model to jump to its details below.
Common enquiry contexts include LMW MBO Flexiclean 3/4, Unimix 1.2M beater and Unimix 1600mm Beater; and Trutzschler CVT 4 Beater and CVT-Rolls machines.
Machine model names identify application compatibility only — confirm the exact model and position with your enquiry. Vaamana is an independent supplier, not affiliated with the machine OEMs.
Application Summary: The Pinned Roller is used in CVT, RSK, Unimix, ERM Beaters
Highlights:
| Model | Total Length | Working Width | Dia over Pin | Pin Angle | Number of Staves | Number of Flanges | Pin Density | No of Hubs |
|---|---|---|---|---|---|---|---|---|
|

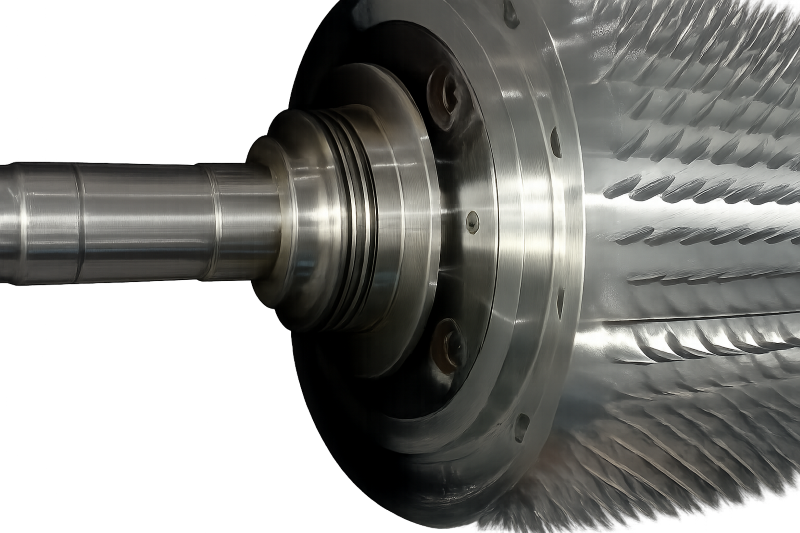

TRUZ CVT-Rolls
VAR-0025
|
1924 mm | 1600 mm | 250 mm | 70 Deg | — | — | — | — |
|
LMW MBO Flexiclean 3/4
VAR-0028
|
1195 working width | — | 406 | 70 | 8 | 3 | — | — |
|
TRUZ CVT 4 Beater
VAR-0029
|
1524 mm | 1200mm | 250 mm | 70 Deg | — | — | — | — |
|
LMW Unimix 1.2M beater
VAR-0030
|
— | 1195 | 400 | — | 10 | — | 1200 Pins Per Lag | 4 Nos of Alumninium Hub |
|
LMW Unimix 1600mm Beater
VAR-0031
|
— | 1600 | 400 | — | 10 | — | 1500 Per Stave | 5 Nos of Aluminium Hub |
Vaamana Corporation is an independent supplier and service provider. Machine brand names are used only to identify compatibility, application or customer enquiry context. Vaamana is not affiliated with or endorsed by the respective OEMs unless expressly stated.
